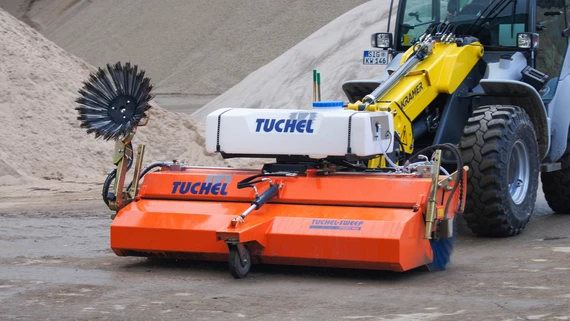

Tuchel-Sweep ECO Pro

The right sweeping-machine in the right place!

The ECO Pro has primarily been made for cost-conscious farmers who want a first-quality road sweeper. Thanks to multiple working widths this road sweeper cannot only be attached to tractors, but also to yard loaders and small fork-lifts. A variety of hitch systems guarantees an optimum fitment to your carrier-vehicle. Basic equipment incl. brand-named wheels with height adjustment, mechanical angling incl. shear-off bolts and a resistant PP-brush. The basic machine has a brush diameter of 520mm. The adjustment of the brush is done by an easy locking lever. The machine includes a sophisticated broom positioning that assures an even distance. On demand, the ECO Pro can be equipped with a dirt collector incl. hydraulic emptying and free sweep system (standard). So you are enable to work with the dirt collector or to use the ECO Pro for simple-sweeping without having to dismount the hopper.

Working width: 135 /150 / 180 / 230 cm

Each machine can be configurated individually according to your requirements.

Basic equipment:

  • Brush: Ø 520 mm,
    full brush 100 % PP
  • Mechanical angling
  • Splash guard
  • Hydraulic drive by a high-capacity hydraulic motor
  • The adjustment of the brush is done by an easy locking lever
  • Height adjustable brand-named support-wheels: Ø 200 x 50 mm

Hitch systems:

  • Three-point linkage incl. parking stand
  • A-frame, height adjustable incl. pendulum
    adapter and with quick-locking system
  • Yard loader / Front loader hitch with
    parallelogram and pendulum compensation incl. height indicator
  • Fork-tines attachment incl. parallelogram and height indicator
